B & G Zg50 GPS sensor voor Zeus

B & G Zg50 GPS sensor voor Zeus

BTW (21%)
Product uit assortiment

B & G Zg50 GPS sensor voor Zeus
In de rubriek B&G vindt u de producten en prijzen van B&G. Een selectie B&G producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, ais, navigatie, transducer. Volledige fabrieksgarantie op de B&G producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de B & G Zg50 GPS sensor voor Zeus.

Specificaties

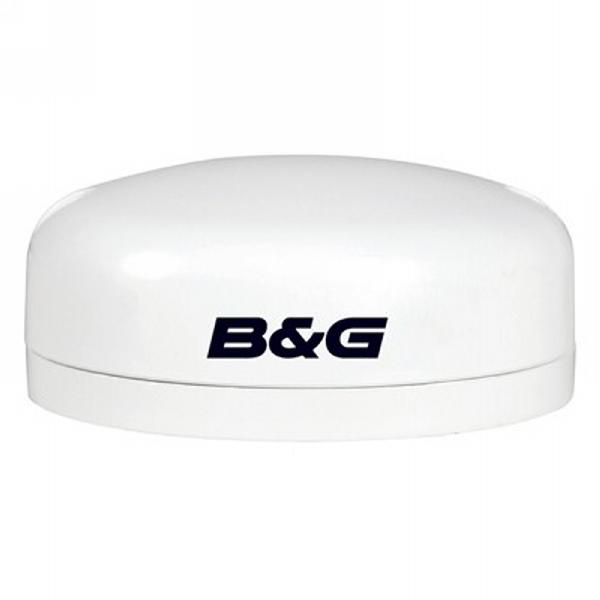

B&G ZG50 GPS SENSOR FOR ZEUS

ZG50 gives you the ultimate confidence in your position first time, every time. A perfect partner for Zeus navigation systems.

The latest GPS positioning technology, combined with an update rate of 5 Hz, gives accuracy during acceleration and manouevering. NMEA 2000 compatible and improved accuracy in WAAS and EGNOS areas.

  • High Accuracy
  • Compact Design
  • WAAS
  • Fast Update
  • IP67
  • EGNOS
GPS / NAVIGATION

GPS Antenna Type NMEA2000 GPS Receiver Channels 16 channels GPS Position Accuracy 3 m 10 ft GPS: Tracking Capability 12 Satellites tracking. Tracking velocity < 1000 knots DGPS: Receiver Type SIRF III Chip DGPS: Start-Up Time Cold start <35s approx. Warm start <1s approx DGPS: Frequency Range 1575.42 MHz

NETWORKING / CONNECTORS

NMEA Output System time, position, rapid update, GNSS DOP's, GNSS position data, GNSS sats in view (messages required by NMEA 2000 protocol) Connectors Micro-C male connector

TECHNICAL / ENVIRONMENTAL

Casing UV stable plastic Mounting Pole or surface mount Waterproof Standard IP7 (fully watertight) Width 75 mm 3 in Height 32 mm 1.3 in Diameter 75 mm 3 in Dimensions Height w/mounting base: 110 mm Weight 0.08 kg 0.18 lbs Humidity 95% at 60°C (140°F) IEC 60945 Operating Temperature -20°C to +70°C (-4°F to 158°F)

POWER

Power Supply 12 V via network cable vDC Power Consumption 20 - 40mA at 12V NMEA 2000 Load Equivalency Number 1 network load (50mA)

OTHER

Cable Micro-C to SimNet cable 4 m (13 ft)
