The all-new Triton instrument and Pilot range brings the outstanding performance synonymous with B&G to the cruising yachtsman and club racer in an easy to use, great value, package. Triton navigation systems consist of large and clear instrument displays, an intuitive autopilot controller and sensors packed full of race-winning pedigree, all of which can be easily installed and integrated with other electronics to create a bespoke system designed around you and your yacht.

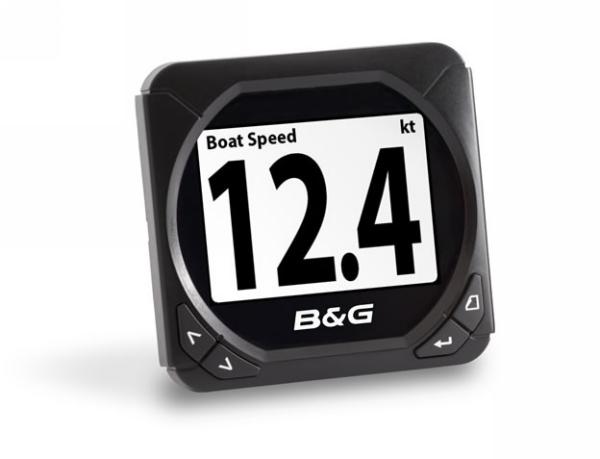

Clear 4.1-inch bonded LCD display - the first and only one in its class.
• Large 4.1-Inch Display
Clearly read sailing information including wind, speed, depth, heading, pilot status, log, timer and much more on a tough, sunlight viewable screen that’s almost 40% larger than rivals.
• Bonded LCD
Greater contrast enhances readability with a massive 170° viewing angle, whilst zero condensation ensures a clearly visible screen in all seasons and provides outstanding longevity and durability.
• Full Colour
Enjoy an extremely clear display with the latest LCD technology,
day or night.
• Low Power
Typically 100mA - up to 30% less than its rivals.
• Easy Installation
Micro-C connectors provide for quick and easy daisy-chain connection - ideal for retro-fit or new build. Compatible with industry standards.
• Simple User Interface
Straight forward menus are navigated with ease by Up, Down and Enter keys and a dedicated Page key enables rapid selection of your favourite data.
• Expandable
Choose a simple network and expand it to fi t your requirements with full B&G Zeus navigation system compatability.
• B&G Precision
Grand Prix derived sensor technology provides the most accurate information available.
Speed / Depth Sensor Specifications:
TECHNICAL/ENVIRONMENTAL
|
| Functions
| • Speed • Depth • Water Temperature
| Network
| NMEA2000®, Load Equivalency Number (LEN): 4
| >Depth sensor frequency
| 235kHz
| Maximum Depth
| Up to 100m (330')
| Pressure Rating
| 3.0m \ 10')
| Temperature Sensor Accuracy
| ±0.5°C (±1.8°F)
| Temperature Sensor Range
| -10°C to 40°C (14°F to 104°F)
| Weight
| 0.9kg \ 2.0lb
Wind Sensor Specifications:
TECHNICAL/ENVIRONMENTAL
|
| Construction
| Alloy spar; injection moulded conductive plastic electronic housing
| Environmental protection
| IP66
| Spar Length
| 435mm \ 17.1"
| Weight
| 230g \ 8.11oz |
|
