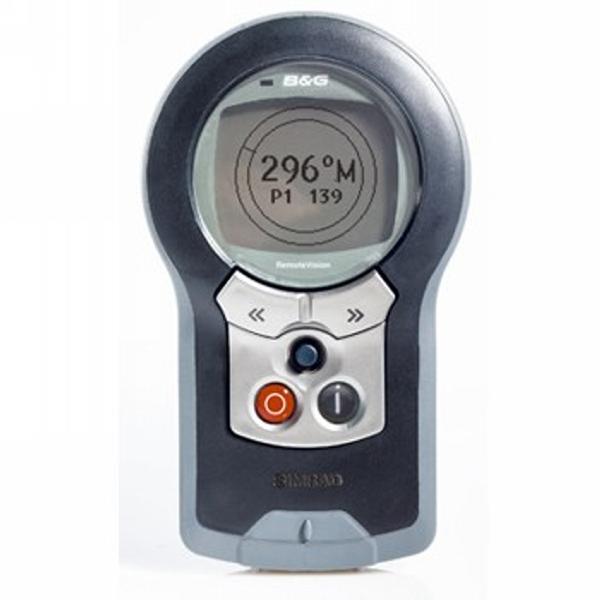

Remote Vision A wireless link to your instrument system and pilot controller in the palm of your hand

Originally conceived following talks with Ellen MacArthur following her request to be able to access vital B&G data and control her autopilot wherever she was, whatever she was doing on the boat.

Fully waterproof to IP68 standards, with a tough ruggedized finish and easy grip. Carry it with you wherever you are, or store it close by in its holster.  The Internal, gimbaled, electronic fluxgate compass enables you to get and store instant and accurate bearings to any point from wherever you are on deck.   The complete navigators tool.  When it gets dark, the integrated, LED torch ensures you always have light where you need it.

How does it work?

The lightweight, palm sized unit is linked to the instrument and pilot control network through a small base station and secure wireless connection, suitable for use on both small and large vessels. Each unit is paired to the base station on your boat through a unique pin number, ensuring total security and control within the boats own system.

Who is it for?

RemoteVision is the “must have” tool for any sailor, whether single handed, with crew, racing or cruising. It offers you, full wireless access to B&G Hydra and Hercules instrument and pilot systems and enables you to do everything you can with the regular Full Function and Pilot displays and more!

Simple to use!

The control buttons operate through simple mobile phone logic. On, off, autopilot dodge, port and starboard and joystick control to easily navigate through the menu. The clear graphical display will show any information from your instruments or pilot during day, or night with the aid of the backlight.

Control of your boat at the touch of a button

View data from your system, including boat speed, wind, depth or heading data in the palm of your hand, wherever you may be on the boat. Check your heading and bearing to waypoint and alter course by a few degrees, or maneuver the boat in an emergency. All done simply and quickly from wherever you are; changing sails on deck, or even climbing the mast!

Simple to install and easy to use

RemoteVision is not just for new systems; it can be easily Retro-fitted to most B&G Hercules or Hydra systems. Installation is simple and takes a matter of minutes, through a single cable connection from the small base unit onto the B&G network.

Vital Information always to hand

Take vital tactical decisions from wind shifts, or study graphical time plots of any instrument data such as true wind speed or direction, or even barometric pressure when you’re cruising offshore. You can even view your expected heading on the opposite tack.

Accurate instrument calibration made easy

RemoteVision makes B&G so simple to use. It’s never been so easy to calibrate your instruments. For instance, to calibrate true wind direction, just sail the boat on each tack and make a note of your true wind direction each time, or view data on the time plots; if there is a difference from tack to tack, simply access the calibration tables with the joystick and enter in your new offset values.

Safety First, wherever you are

One of the most outstanding safety features is the alarm answer mode. Set and monitor alarms whilst resting in your bunk, so that if the system senses the vessel heading off course, the controller can be used to answer alarms and set pilot parameters without having to be at the chart table or on deck.

Full system control

Edit the way you or your crew view instrument displays such as 20/20s or 40/40s, or even turn on display lighting when it gets dark. Set the Race timer, or view it personally in the palm of your hand whilst sitting on the rail.

Keep up to date

Upgrade RemoteVision software quickly and simply from a PC or PDA through the wireless link.

Specifications

Display

Resolution: 128 x 100 pixelTechnology: FSTN dot-matrix Transflective LCDLighting: Green / Blue EL Panel, 3 levelsTorch/FlashlightType: Single high bright blue / white LED

Performance

Communication Range: Up to 50m (typical)*Communication Security: Secured by unique PIN codeCompass Accuracy: +/- 3º (typical)

Physical

Construction: Molded Acrylic & ABSDimensions: 133 x 81 x 35mm (max)Weight: 300g (inc. batteries)

Environmental

Sealing: IP68Operating Temperature: - 10 to + 60ºCStorage Temperature: - 20 to + 80ºCHumidity Range: 0 - 95% RHCompass Safe Distance: 0.1 m (typical)

Electrical

Supply: 2 x 1.5V AA (LR6) size batteriesBattery Life: 60 hours (typical usage)*> 200 hours (typical standby)*(Battery life reduced if re-chargeabletype batteries are used)

Physical

Construction: Molded ABSDimensions: 111 x 105 x 75mm (max)Weight: 600g (inc. 2m FastNet Cable)

Environmental

Sealing: IP67Operating Temperature: - 10 to + 60ºCStorage Temperature: - 20 to + 80ºCHumidity Range: 0 - 95% RH

Electrical

Supply: 12Vdc (nominal) via FastNet busPower Consumption: 2WCompliance (RemoteVision & Base Unit)RF: 2.4GHz ISM band, ETS 300 328EMC: EN60945

Compatibility

H3000 Hydra, Hercules and Hercules PerformanceHercules 2000, Hydra 2000, Hercules 790, Hercules 690, Hydra 330, Hydra 2,
