B & G H3000 10/10Hv Pack
In de rubriek B&G vindt u de producten en prijzen van B&G. Een selectie B&G producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, ais, navigatie, transducer. Volledige fabrieksgarantie op de B&G producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email of bel 010-7370047 voor tips en advies over de B & G H3000 10/10Hv Pack.

Specificaties

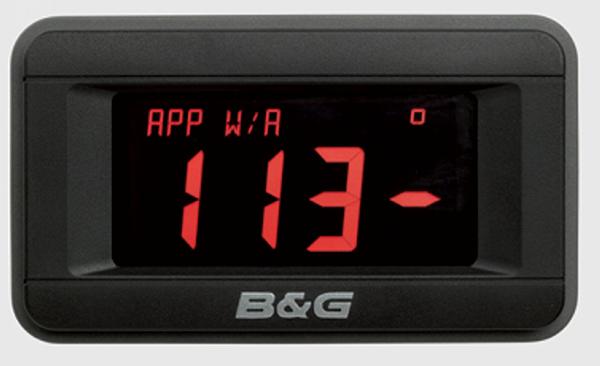

The ALL NEW 10/10 HV display has been designed to fulfill the requirements for a small cockpit display to position data where it is needed.

The HVision range of displays are lightweight, single-line data units incorporating B&G’s unique HV technology.



HV technology ensures the maximum contrast, perfect backlighting and no possibility of condensation. HV displays are the clearest displays available.



The 10/10 is a compact display that allows data to be positioned where it is needed, rather than where it fits. Its compact dimensions allow the 10/10 to be installed almost anywhere – typical installation areas are the base of winch pedestals, alongside hydraulic control panels, steering pedestals or as a companionway display on the smaller yacht.





HV displays store 14 pages which can be configured to show almost any system function. The display can be controlled or configured from any GFD or GPD (Pilot) display or with a RemoteVision.

The pre-set functions are as follows:

Boat speed

Depth m

Depth ft

Apparent Wind Speed

Apparent Wind Angle

True Wind Speed

True Wind Angle

Velocity Made Good

Heading Timer

Bearing to Waypoint*

Course Over Ground*

Speed Over Ground*

True Wind Direction





Note:

Functions marked * are NMEA Functions and are available only when a

suitable Position Fixer is interfaced with the system.
