Art.Nr.:
Actisense Usg - 1 Usb To Serial Gateway RS422 / NMEA 0183 / IEC61162 - 1
Actisense Usg - 1 Usb To Serial Gateway RS422 / NMEA 0183 / IEC61162 - 1
BTW (21%)
Actisense Usg - 1 Usb To Serial Gateway RS422 / NMEA 0183 / IEC61162 - 1
Actisense Usg - 1 Usb To Serial Gateway RS422 / NMEA 0183 / IEC61162 - 1 |
![]() |
In de rubriek Actisense vindt u de producten en prijzen van Actisense. Een selectie Actisense producten die u kunt kopen zoals een interface, multiplexer, gateway, connector. Volledige fabrieksgarantie op de Actisense producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Module en Navigatie Toebehoren en Instrumenten zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Actisense Usg - 1 Usb To Serial Gateway RS422 / NMEA 0183 / IEC61162 - 1. |
Specificaties

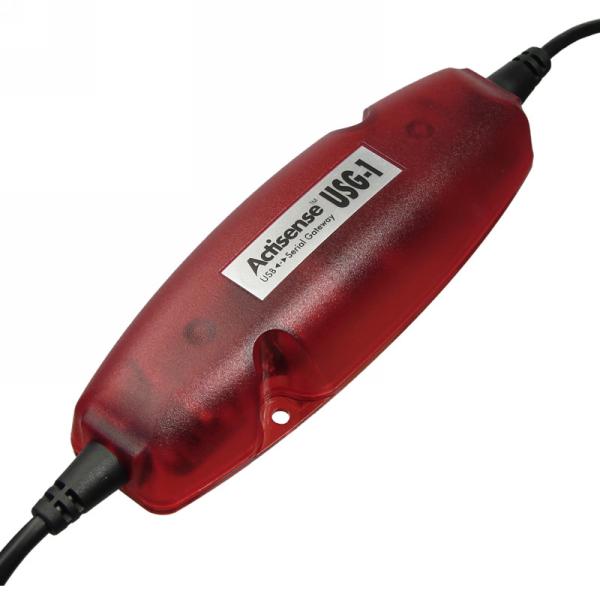

Actisense USG-1 USB to Serial Gateway RS422 / NMEA 0183 / IEC61162-1 Connect your boats data network to your PC with the safety of full electrical isolation. The Actisense USG-1 is the safest way to connect a boats data network to an on-board PC. It converts a USB port into a bi-directional serial port suitable for connecting to a marine standard NMEA 0183 data bus. The ISO-Drive output and Opto input provide full isolation, making installation simple and free from ground loops. The Opto input uses the Actisense isolation circuitry to protect any connected equipment from the most common system faults. The isolator can receive very low level differential signals that are often too small to be received by a PC serial port. The USG-1 overcomes all the problems of using a low-cost USB to RS232 cable from a computer store. It eliminates the risk of damage to the PC as it provides complete isolation. Features:
|
