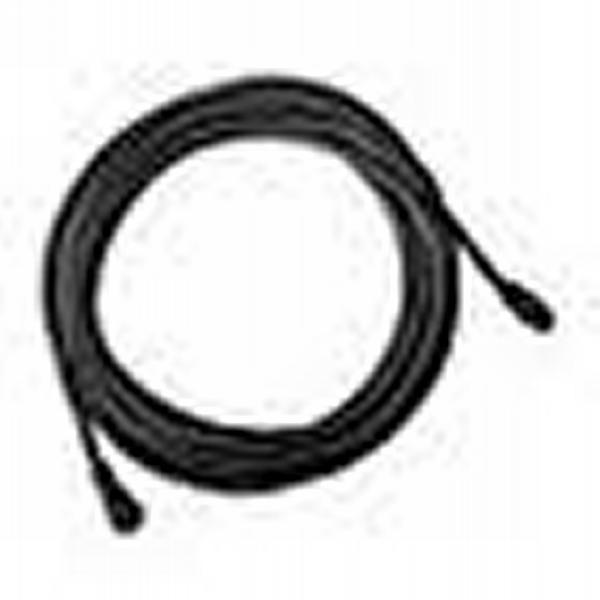

Actisense NMEA 2000 5M Kabel
Actisense NMEA 2000 5M Kabel
BTW (21%)
Actisense NMEA 2000 5M Kabel |
![]() |
In de rubriek Actisense vindt u de producten en prijzen van Actisense. Een selectie Actisense producten die u kunt kopen zoals een interface, multiplexer, gateway, connector. Volledige fabrieksgarantie op de Actisense producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Module en Navigatie Toebehoren en Instrumenten zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Actisense NMEA 2000 5M Kabel. |
SpecificatiesCable detailsThe NMEA 2000 cable includes five wires within a single waterproof cable: power and ground wires, two signal wires and a drain wire. The drain wire connects to the cable shield which protects the signal, power and ground wires from external Radio Frequency Interference (RFI) and helps reduce RFI emission from the cable. NMEA 2000 Micro cable can carry up to 3 Amps of supply current and can be used to create a backbone up to 100 metres in length. If the backbone length required exceeds 100 metres, the centre of the bus can be extended with NMEA 2000 Mini cable to keep the outer Micro sections to the 100 metre maximum. The maximum permitted length of a drop cable (distance from the backbone) is 6 metres. However it is important to limit each drop length to the minimum required as the total of all drop lengths must not exceed 72 metres. |
