Actisense Ndc - 4 - Ais NMEA Multiplexer Pre - geconfigureerd als Ais Multiplexer

Actisense Ndc - 4 - Ais NMEA Multiplexer Pre - geconfigureerd als Ais Multiplexer

BTW (21%)
Product uit assortiment

Actisense Ndc - 4 - Ais NMEA Multiplexer Pre - geconfigureerd als Ais Multiplexer
In de rubriek Actisense vindt u de producten en prijzen van Actisense. Een selectie Actisense producten die u kunt kopen zoals een interface, multiplexer, gateway, connector. Volledige fabrieksgarantie op de Actisense producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Module en Navigatie Toebehoren en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Actisense Ndc - 4 - Ais NMEA Multiplexer Pre - geconfigureerd als Ais Multiplexer.

Specificaties

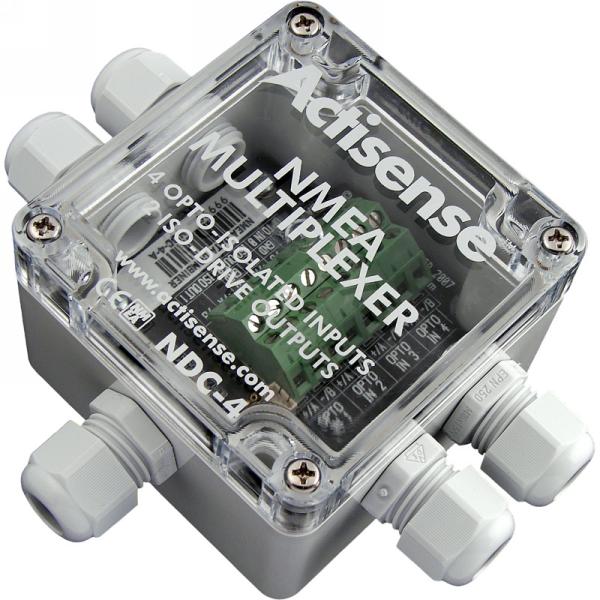

Actisense NDC-4-AIS NMEA Multiplexer pre-configured as AIS Multiplexer

Flexible multiplexing, preconfigured for AIS operation.

The Actisense NDC-4 and NDC-4-USB allow up to five Opto-isolated NMEA 0183 sources to be multiplexed into a single stream*.

Two flexible ISO-Drive outputs allow two different downstream talker baud rates to be created, ensuring maximum system flexibility.

The NDC-4 is flexible and powerful enough to be the heart of a simple system, or one of many Actisense products in a more complex system. It provides complete access to all NMEA 0183 data sources, configurable filters to remove unwanted data, as well as enabling an on-board PC to read and add to the combined data stream.

Factory preconfigured versions enable the NDC-4 to be used out of the box for AIS operation (NDC-4-AIS) or as an Autoswitch (NDC-4-ASW).

*Four inputs on the USB version, as the USB interface acts as the fifth channel, overriding the fifth OPTO input.

Features:
  • Multiplex up to five NMEA 0183 devices
  • Filter unwanted data
  • Five Opto inputs
  • Two ISO-Drive outputs
  • Intelligent multiplexing software rules
  • Configurable baud rates and port priorities
  • PC configuration software
  • USB PC interfacing with optional USB Kit
  • AIS compatible
