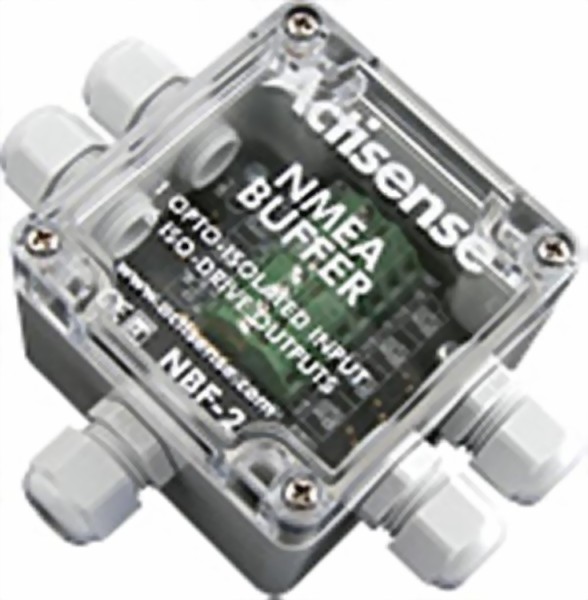

| Parameter |
Description |
Min. |
Max. |
Unit |
Supply voltage
|
| 10
| 35
| V
| Supply current
| Supply voltage 12v (Min. load, Max. load)
| 44
| 100
| mA
|
| Supply voltage 24v (Min. load, Max. load)
| 25
| 49
| mA
| Opto-isolated in
|
|
|
|
| Input voltage tolerance
| Continuous operation
| -15
| +15
| V
|
| Short term operation (< 1 sec)
| -35
| +35
| V
| Differential input voltage
| Required level for data to be detected
| 1.8
| -
| V
| Input current
|
| -
| 2
| mA
| Input to Ground
| Full Galvanic Opto-isolation protection
| -
| 2500
| V
| ISO-Drive out
| NMEA 0183 version 1-3 & PC Serial
|
|
|
| Output current
| RS485 / RS422 / RS232 compatible
| -
| 22
| mA
| Differential output voltage
| 100 ohm load
| 2.1
| -
| V
| Output to Ground
| Full Galvanic isolation protection
| -
| 1500
| V
| Output to Output
| Full Galvanic isolation protection
| -
| 1500
| V
| General
|
|
|
|
| Baud rate
|
| -
| 115200
| bps
| Ambient temperature
|
| -20
| +70
| °C
| Guarantee
| Extended Actisense guarantee
| -
| 3
| Years
|
| M12 gland clamping range
| Cable diameters accommodated (NBF-2-GX)
| 3
| 6.5
| mm
|
| M16 gland clamping range
| Cable diameters accommodated
| 4.5
| 10
| mm
|
