Actisense Nbf - 2 - Gx NMEA Buffer met 7 aansluitingen

Actisense Nbf - 2 - Gx NMEA Buffer met 7 aansluitingen

BTW (21%)
Product uit assortiment

Actisense Nbf - 2 - Gx NMEA Buffer met 7 aansluitingen
In de rubriek Actisense vindt u de producten en prijzen van Actisense. Een selectie Actisense producten die u kunt kopen zoals een interface, multiplexer, gateway, connector. Volledige fabrieksgarantie op de Actisense producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Module en Navigatie Toebehoren en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Actisense Nbf - 2 - Gx NMEA Buffer met 7 aansluitingen.

Specificaties

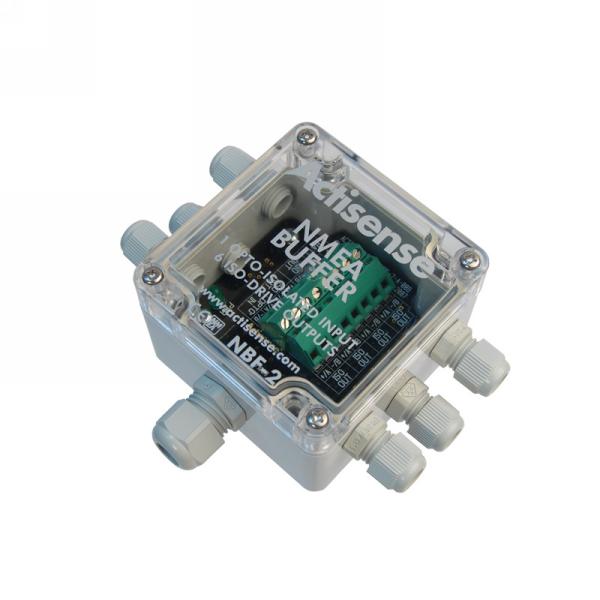

Actisense NBF-2-GX NMEA Buffer with 7 Glands

The power to drive up to six NMEA devices, with the safety of total input and output isolation.

The Actisense NBF-2 galvanically Opto-isolates and buffers NMEA 0183 data to drive multiple NMEA devices, such as chart plotters and radars. It is also ideal for safely interfacing an on-board PC to NMEA 0183 equipment on a vessel.

Designed for use with all NMEA 0183 input and output types (RS422, RS485 and RS232), the NBF-2 produces an amplified copy on each of its isolated outputs.

Galvanic isolation on the Opto-input and the
ISO-Drive outputs ensure protection for both the source talker device and all listening devices.

The NBF-2-GX, with seven glands offers the option to easily seal more connections. The Actisense NBF-2 and NBF-2-GX are invaluable in creating a safe and flexible NMEA data network.

Features:
  • AIS compatible
  • Protects connected devices
  • Simple installation
  • Seal more connections with the NBF-2-GX
  • Can be used to isolate between two PC systems
