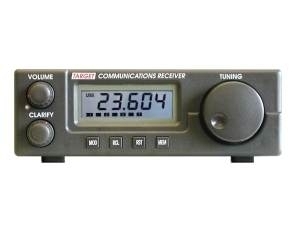

Nasa HF3 HF Receiver met line out-aansluiting

Until now quality single side band receivers have only been available at high cost. The Target HF3 is a masterpiece of R.F.Engineering covering the entire spectrum between 30Khz to 30Mhz. For those new to single side band reception the unit comes complete with everything needed to "get on the air" including a very comprehensive instruction manual which includes a list of useful marine frequencies.



A button on the front of the receiver changes reception mode, from a narrow filter for SSB recepetion to a wide filter which enables high quality audio signals to be heard from broadcast stations around the world. The HF3/P is supplied complete with wire antenna, 12 volt mains power supply and instruction book. A fixed level audio output suits most third party weatherfax software. Technical Specifications Signal level indicator Fully synthesised Frequency range - 30Khz - 30Mhz Modes - USB/AM/LSB Single side band - 3.8Khz wide 10 memory channels AM - 6Khz wide Audio output - 2 watts Power supply - 12 volts DC Power consumption - 300mA Dimensions - Width 180mm, Height 58mm, Depth 170mm
