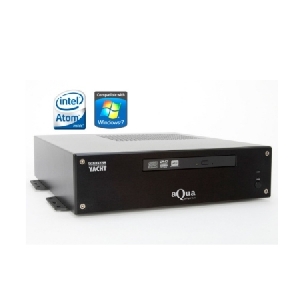

The AquaNav PC is designed as a powerful marine navigation PC, with two NMEA ports, a super fast 64GB solid state hard drive, 2 GB of RAM, built-in dual channel AIS receiver, dedicated GPS Antenna and a CD/DVD RW drive. Standard connections include three USB ports, a VGA and DVI port allowing the system to drive up to two compatible LCD monitors and all the standard system connectors for keyboard, audio and network. Featuring the latest ultra low power Intel Atom N270 processor (2.5W) the complete Aqua PC system typically consumes just 20W but provides all of the PC performance you need to run your navigation software, e-mail, surf the web, etc.



All Aqua PCs are supplied with Windows 7 and feature high efficiency DC-DC converters that allow them to be connected directly to the boat’s 12v or 24v DC supply with no inverter and all models can be switched on/off either from the front panel switch or from a remote push button switch (not supplied). The AquaNav PC can be supplied with an optional built-in Hi-Power Wifi Adaptor or built-in NMEA 2000 Gateway* * Due to space limitations on the rear connector panel, it is not possible to have both of these options fitted.



If NMEA 2000 and Hi-Power Wifi are required fit the built-in NMEA2000 Gateway option and connect a WL400 Wifi adaptor via USB Key Features: 12/24v DC powered, ultra rugged marine PC Fanless design and solid state hard drive, provide totally silent and reliable operation Built-In Dual Channel High Sensitivity AIS receiver Supplied with smart GPS antenna that connects on dedicated IO cable Pre-configured and interfaced so GPS and AIS work straight out of the box Compact - measures just 30 x 27 x 7cm!



Ultra low power consumption with remote turn on/reset capability and auto shut down Intel Atom N270 processor for low power consumption and fast computing Supplied with Windows 7 standard operating system (on UK versions) - Linux version available 2 x NMEA Ports and 3 x USB Ports Easy mounting and installation Fitted with CD/DVD RW 64GB Solid State hard drive All electronics conformally coated for added protection against salt water environment
